When selecting conduit fittings for outdoor or wet environments, NEMA 4X-rated options offer corrosion resistance and weather sealing. This guide highlights five reliable choices suited for rugged outdoor use, industrial panels, and harsh locations. Each product is evaluated for who benefits most, practical limitations, and why it stands out for NEMA 4X installations. Buyers should consider enclosure compatibility, seal integrity, and ease of assembly.
| Product | Brand | Best For |
|---|---|---|
| Insulated Conector, 1/2 in, Nylon, Straight | Hubbell | Low-profile, non-metallic, quick-connects |
| Heyco M3317GDG-SM 1-1/2 NPT Tite Solar Masthead II | Heyco | Complex penetrations, multiple cords |
| Crouse Hinds ECD385 Drain Or Breather | Crouse-Hinds | Internal drainage or venting in NEMA 4X enclosures |
| COREX 4″ Hole Seal | COREX | Knockout-to-conduit sealing for weather resistance |
| Sigma Engineered Solutions ProConnex 44070 | Sigma Engineered Solutions | Rigid conduit to enclosure connections |
Notes: The products above are chosen for their balance of weather sealing, compatibility with common conduit sizes, and practical installation features. The table helps visualize which option may fit different installation contexts, from simple outdoor boxes to more complex penetrations.
Insulated Conector 1/2 In Nylon Straight
Best for: Lightweight, non-metallic connections in damp or outdoor panels. This Hubbell connector is RoHS compliant with a 33 mm outer diameter and 14 mm inner diameter, designed for use with cable and wire. It offers a simple, insulating seal that reduces the risk of corrosion and electrical leakage in exposed environments.
Why selected: Its non-metallic construction minimizes galvanic corrosion risk when paired with metal enclosures. The size and sealing fit are suitable for standard 1/2 in conduits and electrical fittings in NEMA 4X applications.
Caution: Data shows a straightforward utility; ensure enclosure holes and knockouts align with the 54.4 mm length and 33 mm outer diameter for proper fit.
Heyco M3317GDG-SM 1-1/2 NPT Tite Solar Masthead II
Best for: Complex penetrations and cord management where multiple openings are needed with a robust locking nut. This Heyco unit supports 1-1/2 in NPT threads and comes with a 9807 nut, making it suitable for heavy-duty outdoor installations requiring strong mechanical sealing.
Why selected: The dimensions (C and D values) indicate a substantial mounting footprint, beneficial in wet or outdoor panels where reliable sealing and strain relief matter. It is well-suited for wall boxes or enclosures facing significant environmental exposure.
Caution: The data includes detailed hole and thread measurements; verify the exact hole diameter and thread engagement for your enclosure before ordering.

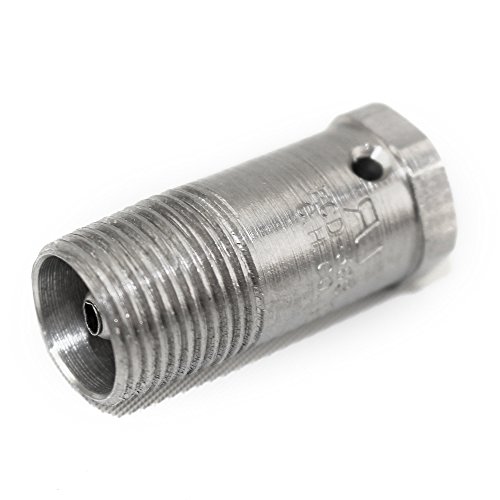

Crouse Hinds ECD385 Universal Drain or Breather
Best for: Ensuring proper drainage or venting within NEMA 4X enclosures to prevent moisture buildup. This universal drain/breather is designed to operate in harsh environments while maintaining seal integrity.
Why selected: In outdoor electrical cabinets, moisture management is critical. This unit offers a straightforward solution to reduce condensation and water ingress in sealed enclosures.
Caution: It is a specialized component—confirm that your enclosure requires a drain or breather point and verify compatibility with your conduit fittings and interior seals.
COREX 4″ Hole Seal with Gasket
Best for: Weatherproofing large knockout holes on outdoor electrical enclosures. The three-piece design includes a gasket, backplate, and wingnut for a secure seal against moisture and dust.
Why selected: The kit-type assembly makes it a strong option for installations requiring sturdy sealing around larger conduit entries, contributing to NEMA 4X reliability in exposed settings.
Caution: The 4-inch size may be larger than typical knockout holes; ensure your enclosure knockout matches the seal’s dimensions and mounting hardware.
Sigma ProConnex 44070 Rigid Conduit Hub
Best for: Connecting 1/2-Inch rigid conduit to enclosures in a weather-resistant manner. The hub is zinc die-cast and includes a rubber sealing ring and insulator rated for 90°C, providing reliable sealing in outdoor conditions.
Why selected: It combines durable construction with proven sealing components, making it a practical choice for NEMA 4X installations where rigid conduit entry points require robust sealing and mechanical integrity.
Caution: Ensure compatibility with your conduit schedule and enclosure threading; data notes the hub terminates 1/2-in rigid conduit but verify the exact threading and mounting requirements for your system.
Buying Guide
What matters most: In outdoor or wet locations, priority goes to corrosion resistance, sealing integrity, and compatibility with your conduit size. Look for RoHS compliance, gasket details, and whether the fitting supports the exact conduit thread type (NPT, for example).
Material and Sealing Considerations
Non-metallic versus metallic fittings offer different corrosion risks. For outdoor sites, consider gaskets, watertight seals, and the enclosure’s ingress protection rating. Zinc die-cast hubs provide durability, while nylon or other non-metallic parts reduce galvanic corrosion in some metal environments.
Size and Fit
Conduit size, knockout diameter, and thread type must match. Inconsistent sizes lead to leaks or mechanical failure. Use the listed inner/outer diameters, as well as joint length, to determine if a part will fit your enclosure without modification.
Drainage, Venting, and Breathers
For enclosures housing moisture-sensitive electronics, choose drains or breathers to prevent condensation. Ensure the drain/breather is rated for the enclosure and temperature range.
Installation Practicalities
Consider whether the part ships with required nuts or backplates and whether there is a need for additional sealing compounds or gaskets. Some kits include all components for a secure seal, simplifying field installation.
Environmental and Compliance
Check RoHS compliance and temperature ratings to ensure suitability for your climate and regulatory requirements. NEMA 4X-rated fittings should be tested for outdoor corrosion resistance when exposed to humidity and salt spray in coastal areas.
Choosing by Use Case
- Simple outdoor control panels: Insulated nylon connectors from Hubbell are cost-effective and easy to install.
- Complex penetrations: Heyco masthead or bulkhead styles support larger or multiple openings with secure locking.
- Drainage needed: Crouse Hinds ECD385 helps manage moisture in the enclosure interior.
- Large knockout sealing: COREX 4″ hole seals provide rugged weatherproof sealing.
- Rigid conduit to enclosure: Sigma ProConnex hubs deliver durable, sealed connections for 1/2-inch rigid conduit.
FAQ
- What is a NEMA 4X conduit fitting?
A NEMA 4X fitting is rated for outdoor use, resisting wind-driven rain, corrosion, and other environmental hazards while sealing the conduit entry. - Which fitting is best for 1/2 inch conduits?
The Hubbell insulated nylon connector and Sigma ProConnex hub are suitable for 1/2 inch conduits, depending on the enclosure and threading. Check exact dimensions. - Do I need a drain or breather in all outdoor enclosures?
Not always, but in humid climates or enclosures with electronics, a drain or breather helps prevent condensation and moisture accumulation. - What should I verify before purchasing?
Verify thread type (NPT vs other), hole diameter, gasket availability, and whether the enclosure requires a specific sealing arrangement. - Are metal fittings always required for NEMA 4X?
No; non-metallic and metallic fittings can be used, but consider corrosion resistance and enclosure compatibility for your environment. - Is RoHS compliance important for conduit fittings?
RoHS indicates restricted hazardous substances; it is beneficial for long-term reliability and compliance, especially in sensitive installation areas.
