Multi level terminal blocks provide compact, organized connections for complex electrical panels. Designed for DIN rail mounting, they simplify wiring runs, improve reliability, and support quick maintenance. This guide highlights five top options across brands and configurations, with key features to compare when selecting blocks for multi-level circuits. Each product is evaluated for build quality, compatibility with standard DIN rails, current and voltage ratings, and ease of use in tight electrical diagrams.
| Product | Brand | Key Strength | Link |
|---|---|---|---|
| SIPUN ST2-2.5/2-2 Double Layer | SIPUN | Push-in spring terminal with clear push button | Amazon |
| Vanky Industry 10pcs Multi-Level | Vanky Industry | PHOENIX PT compatibility, multi-level design | Amazon |
| Saysurey ST2-2.5/2-2 Set | Saysurey | Complete kit with covers, end stops, jumpers | Amazon |
| uxcell MBKKB2.5 DIN Block | uxcell | Double-level, 500V rating | Amazon |
| CESFONJER 2-in-8-out | CESFONJER | Two in, eight out, lever operation | Amazon |
SIPUN ST2-2.5/2-2 Double Layer Terminal Block
The SIPUN ST2-2.5/2-2 is a double-layer DIN rail terminal block designed for push-in wiring. It uses a push button lever for quick electrical insertion, with a copper conductor for reliable conductivity. Manufactured from PA66 material, it aims to balance electrical performance with flame retardancy and elasticity. The compact design supports multi-level layouts on standard DIN rails, making it suitable for panel automation and control circuits that require orderly branch connections. The kit is presented in a 30-piece set, emphasizing scalability in dense panels.
Key considerations include tactile feedback of the push-in mechanism for repeated maintenance, how the lever feels under typical enclosure heat, and whether the PA66 housing maintains dimensional integrity after exposure to typical DIN rail vibration. For projects with frequent reconfiguration, the clear lever action can reduce mis-wiring and improve labor efficiency. Practitioners should verify compatibility with their conductor sizes and ensure that the current and voltage ratings meet project requirements.
Vanky Industry Multi-Level Terminal Block Kit
The Vanky Industry offering is a 10-piece assortment designed to be compatible with Phoenix PT 2,5-3L 3210499 systems. This gray multi-level block emphasizes adaptability in modern control panels, allowing quick cross-rail connections across levels. The kit’s design focuses on straightforward rail mounting and stable electrical contacts, suitable for environments where space is at a premium and wiring density is high. While the listing highlights compatibility with a specific PT model, it remains broadly useful in standard DIN-rail configurations where multi-tier expansions are common.
Users should compare the rail thickness compatibility and any jumper needs for bridging levels. It is also important to confirm that the copper contact points deliver low resistance and that the housing materials resist aging under repeated temperature cycling. For installations requiring easy replacement, check whether the terminal block interlocks securely within the DIN guide to minimize drift or loosening over time.

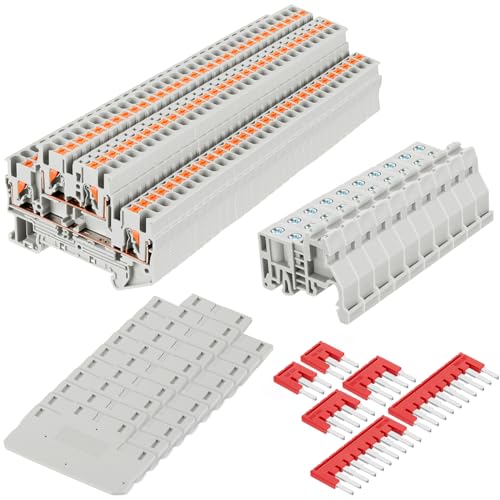

Saysurey DIN Rail Twin Spring Terminal Set
The Saysurey kit bundles 30 double-layer ST2-2.5/2-2 terminal blocks with covers, end stops, and jumpers, designed for flexible multi-level wiring on 35 mm DIN rails. The pack includes a range of jumpers for 3- and 5-pole, plus 10-end stops to organize the rail layout. Constructed from PA66 with copper conductors and stainless steel reeds, the assembly supports a rated current of 24A and a voltage rating of 800V. The comprehensive set reduces sourcing time for large projects and supports modular panel design.
Considerations include ensuring that the included end stops and covers maintain secure insulation between adjacent pins, while flame-retardant properties reduce risk in enclosure faults. Assess whether the jumpers align with the desired pole counts for each circuit and whether the lever action remains smooth after long-term exposure to dust or moisture. These blocks are well-suited for automation panels that require rapid reconfiguration or expansion.
uxcell 10Pcs MBKKB2.5 DIN Rail Block
The uxcell MBKKB2.5 set provides a double-level terminal block with a 500V rating, packaged as 10 pieces in gray. The product emphasizes a straightforward plastic and metal construction, making it suitable for compact panel layouts. The 2.5 mm2 cross-section supports a reasonable range of conductor sizes common in control cabinets. This option prioritizes simplicity and affordability for basic multi-level wiring tasks where high density is required without specialized features.
When selecting this block, verify that the insulation class and material stability fit the environmental conditions of the panel. The 500V rating covers many consumer and industrial control applications, but it is important to check the current rating for your specific wire gauge and duty cycle. The overall design favors quick installation and easy replacement, which can benefit maintenance teams in high-turnover environments.
CESFONJER 2-in-8-out Compact Terminal Blocks
The CESFONJER 2-in-8-out blocks deliver expanded wiring capability with two input conductors feeding eight outputs. This lever-based design supports tool-free operation and flexible mounting via DIN rails or screws, making it suitable for dense panel installations. The PA66 enclosure with stainless steel springs and copper contacts aims for reliable performance under load, rated at 32A and 600V. The kit’s compact size makes it ideal for panels where space is constrained but a higher port count is required.
Considerations include ensuring the two-in, eight-out configuration aligns with your circuit diagram and that the lever mechanism remains accessible during service. The mounting options should match your enclosure design, and the terminal’s current rating should be checked against wire gauge and planned temperature rise. For complex control panels, these blocks can reduce wiring complexity while maintaining safety and dependability.
Ciuouient Speaker Level To Line Level Adapter
This adapter focuses on signal transformation rather than power distribution, converting speaker level signals to line level signals. It is compatible with multi-room audio systems that feed into higher-powered amplifiers, facilitating integration with existing DIN rail terminal blocks for signal routing. The 4-pin 5.08 mm terminal block included allows straightforward connection to compatible equipment, supporting smoother transitions between amplified outputs and line-level inputs in audio installations or test benches.
In choosing this accessory, consider intended signal integrity and impedance matching requirements, as well as whether the adapter should sit on the same DIN rail as other power and control connections. While this component is not a power distribution block, it complements multi-level terminal arrangements by organizing signal pathways with consistent grounding and shielding practices. It is best used in setups where audio distribution or test setups demand modular signal routing along with power distribution in a single rail system.
Power Distribution DIN Rail Assembly
This product emphasizes a UL 600V rating and a 60-amp capacity for parallel power distribution, with jumpers and a compact white-red-green-black configuration. The assembly is designed for DIN rail mounting and supports multiple conductors on a single rail, enabling efficient power distribution in large panels. The included jumpers facilitate quick assembly of main and return lines, reducing wiring complexity and potential misconfigurations in high-power applications.
Key considerations include ensuring that the assembly’s voltage and current ratings align with the panel’s total load, confirming that jumper configurations match the circuit plan, and checking for compatibility with standard DIN rails used in your installation. The product’s Made in USA claim may appeal to projects with sourcing and compliance preferences. This option is well-suited for main distribution across a panel where multiple branches require reliable, centralized power routing.
Buying Guide: Key Purchase Considerations For Multi Level Terminal Blocks
When choosing multi level terminal blocks, consider these critical factors to ensure reliable performance and ease of use in American panel environments:
- Voltage and current ratings: Verify that the block’s specifications cover the expected operating conditions, wire gauge, and circuit duty cycles.
- DIN rail compatibility: Confirm standard 35 mm DIN rail compatibility and assess mounting options (DIN rail brackets vs. screws) for your cabinet layout.
- Number of levels and poles: Plan the number of levels and poles per block to minimize crossing wires and maintain clean traces on diagrams.
- Material and insulation: Look for flame-retardant housings (PA66 or equivalent) and corrosion-resistant contacts to improve longevity in typical panel environments.
- Ease of use: Push-in or lever mechanisms should offer tactile feedback and reliable retention to reduce rework during maintenance.
- Accessory availability: End stops, covers, jumpers, and mounting hardware can simplify assembly and long-term organization.
- Thermal and environmental considerations: Ensure materials tolerate expected temperature ranges, humidity, and potential contaminant exposure in the enclosure.
- Safety and compliance: Check UL or other relevant certifications and compliance with local electrical codes for American installations.
- Upgrade path: Consider blocks that allow easy expansion to accommodate future circuit additions without reworking entire panels.
In practice, select a kit that provides a balance of robust electrical performance, clear labeling, and modularity. For dense panels, prioritize higher-density, multi-level options with reliable contact materials and minimal resistance. Compare kits by including criteria such as the availability of end stops and covers, compatibility with common conductor sizes, and the ease of integration with other DIN-rail components like signal adapters and power distribution modules.
