When building or upgrading a DIN rail system, selecting the right circuit breakers is essential for safety and reliability. The following five models are designed for various residential, commercial, and solar applications, offering thermal-magnetic trip, DIN rail mounting, and durable construction. This guide highlights each product’s key features and practical uses to help you compare options without price assumptions.

A quick summary of chosen products:

CHTAIXI 3 Pack 1 Pole Miniature Circuit Breaker

The CHTAIXI 3 Pack 1 Pole Miniature Circuit Breaker provides overcurrent protection for a range of 110–230 V AC circuits. Featuring a Curve C magnetic trip (5–10x rated current) and silver alloy contacts, these breakers are designed for fast response to overloads. The flame-retardant shell and color indicators help with safe handling and quick status checks in panel assemblies. Suitable for general circuit protection and isolation tasks, these units are ideal for compact residential or light commercial distribution schemes.

Features at a glance include: 20 A rating, 120/240 V operation, DIN rail compatibility, and robust construction suitable for quick installation in standard panels. The 3-pack offers economical expansion for multi-circuit setups without compromising on reliability. While primary utility is general protection, these units can also support isolating functions where needed.

Chtaixi AC Miniature Circuit Breaker, 2 Pole DIN Rail MCB

This CHTAIXI two-pole DIN rail MCB is designed for higher protection needs with a 20 A rating and Curve C magnetic trip, suitable for 120/240 V systems. Its dual-pole design provides simultaneous protection across both hot lines, making it well suited for 2-wire residential circuits and solar disconnect configurations. Silver alloy contacts and a flame-retardant housing reinforce durability in panel installations, while a color indicator aids quick status checks during maintenance.

Key usages include protecting circuits from overloads and short circuits, with reliable magnetic trip action for responsive fault clearing. The unit’s compact size makes it suitable for tight panel spaces where two-pole protection is needed for shared loads or solar-related equipment.

MOLLOM 2 Way IP65 Din Rail MCB Distribution Box

The MOLLOM IP65-rated distribution box provides robust protection for both indoor and outdoor installations. Built from durable PC+ABS alloy, the unit measures 60x95x125 mm and features IP65 sealing to resist dust and water ingress. It supports easy wall mounting and is designed to house multiple MCBs on a single DIN rail, offering an organized, weather-resistant enclosure for protected circuits in challenging environments. IK08 impact resistance adds another layer of durability for harsh sites.

Ideal uses include outdoor installations, workshops, garages, or industrial spaces where weather sealing and enclosure integrity are critical. Its wall-mount capability simplifies integration with existing electrical panels and conduit layouts while keeping distribution blocks protected from the elements.

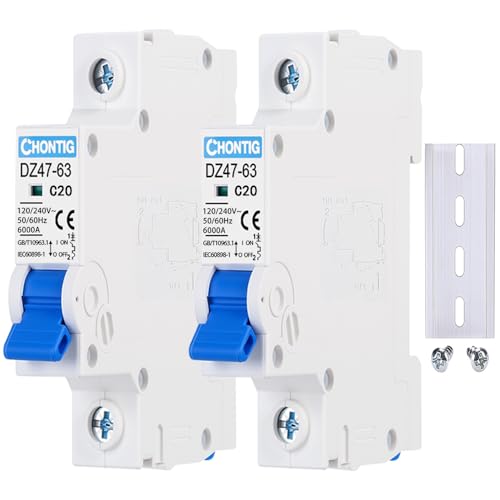

CHONTIG MCB C20 20A 1 Pole DIN Rail

The CHONTIG C20 20A one-pole MCB supports 110–240 V AC circuits with Curve C magnetic trip for rapid response to overcurrent events. This unit is particularly suitable for solar applications, RV power systems, and general home electrical protection. The simple DIN rail mounting and clear status indicator help installers quickly confirm operation status during setup and routine checks. The robust construction is designed to withstand frequent cycling in busy electrical panels.

For best results, pair this MCB with a properly rated service panel and ensure consistent torque on terminal connections to minimize contact resistance and maximize protection reliability in daily operation.

ControlGear UL489 Listed 15A 1 Pole MCB

This UL-489 listed miniature circuit breaker delivers 15 A protection with a 277 VAC maximum and 60 VDC rating, suitable for a broad range of American electrical systems. The 1-pole C-curve trip profile provides dependable overcurrent protection for branch circuits in control panels, HVAC equipment, and other critical loads. It mounts quickly onto a 35 mm DIN rail or can be panel-mounted for versatile integration.

Technical notes emphasize UL-489 certification for US/Canada compliance, with a 10 kAIC short-circuit rating. The product is well-suited for control electronics, HVAC control panels, and branch circuit protection where a compact, reliable 15 A device is appropriate.

MOLLOM 8 Way IP65 Din Rail MCB Distribution Box

The MOLLOM 8-way distribution box expands protection across multiple circuits while maintaining IP65 weather resistance. With a robust PC+ABS exterior and DIN rail mounting compatibility, this enclosure is designed for indoor or outdoor installations where multiple breakers must be housed in a single, organized unit. The IP65 rating helps seal out dust and moisture, protecting sensitive electronics and connections in demanding environments.

Buying Guide: Choosing the Right Din Rail Circuit Breaker Panel

Key considerations when selecting DIN rail circuit breakers and distribution boxes include voltage and current ratings, trip curve type, and mounting compatibility. Curve C breakers respond quickly to overloads and short circuits, making them suitable for most general and solar-related applications. For critical loads or sensitive devices, a fast magnetic trip helps protect equipment more effectively.

Consider enclosure needs as well as environmental exposure. IP65-rated boxes offer weather resistance for outdoor or dusty locations, while standard IP-rated enclosures suit indoor installations. If you need multi-circuit protection, look for distribution boxes that provide multiple MCB slots on a single DIN rail, with appropriate space for wiring and terminal blocks.

UL/IEC certifications affect compatibility and compliance with local electrical codes. In the United States, UL-489 and similar certifications indicate suitability for branch circuit protection in residential and commercial panels. For solar or RV contexts, ensure the device supports the required voltage range and surge tolerance.

Installation and maintenance ease matters. Look for units with clear status indicators, durable contact materials, and modular designs that simplify replacement or expansion. When selecting a set, consider a mix of single-pole and multi-pole breakers to accommodate branch circuits of varying demands and to optimize space in the panel.

Reliability and durability are essential. Breakers with flame-retardant housings, silver alloy contacts, and protective enclosures tend to offer longer service life in demanding environments. Finally, verify that the product family you choose supports your panel’s DIN rail standard and mounting method to ensure a smooth, code-compliant installation.
