Yes—finding the right deep well pump control box matters for reliability, protection, and easy maintenance. This guide highlights five solid options that balance protection features, installation ease, and compatibility with common deep well submersible pumps. Best for homeowners replacing a failed controller, rural properties with outdoor wells, or anyone upgrading to a more robust control solution.
| Product | Why It Stands Out |
|---|---|
| Briidea Deep Well Pump Control Box | Overload and thermal protection; easy installation with 5 waterproof knockouts |
| SHYLIYU 1.5HP Control Box | Wide voltage range; straightforward external control box |
| Red Lion RLCB15-230 | UL listed; rugged for indoor/outdoor use; multiple conduit knockouts |
| Walfront 2.2KW Control Box | Thermal protection; heavy-duty ABS enclosure; compatible with many pumps |
| Red Lion RLCB10-230 | Compact 1 HP option; solid NEMA 3-rated enclosure; versatile knockouts |
Briidea Deep Well Pump Control Box
Best for: budget-conscious homeowners seeking reliable protection with easy field replacement of individual parts. Briidea offers overload and thermal protection to prevent short circuits and voltage fluctuations, helping a three-wire single-phase submersible pump operate consistently. Its design minimizes downtime because failed components can be swapped without pulling the pump from the well, reducing maintenance costs over time. The five waterproof knockout holes support flexible wiring from multiple directions, with standard hole diameters for common conduit sizes.
Why chosen: The combination of protection features and straightforward maintenance makes Briidea a strong all-around option for outdoor wells. It’s especially suitable where outdoor exposure and simple DIY installation are priorities. Caution: verify sectional ampacity and ensure compatible wiring gauge for your setup to avoid overloading the enclosure’s connectors.

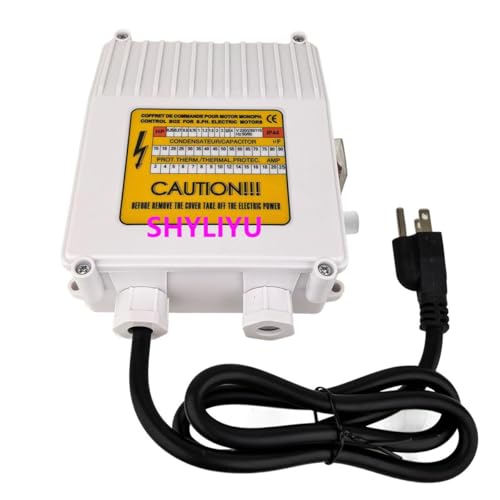

SHYLIYU 1.5HP Submersible Deep Water Pump Control Box
Best for: users needing a simple external controller with a wide voltage range (110V-240V) and US plug configuration. SHYLIYU provides a 60uF start capacitor and a straightforward setup for 1.1KW / 1.5HP pumps, making it a practical choice for domestic wells that occasionally require power adjustments. The unit is designed to be easy to connect to a deep well pump and supports typical household voltages.
Why chosen: For installations where the pump and power source vary (e.g., 110V or 230V systems), SHYLIYU’s broad compatibility is advantageous. Caution: the description emphasizes external use; ensure weatherproof mounting and proper sealing to protect the control box in heavily exposed locations. If harsh weather is a concern, consider an enclosure with higher ingress protection.
Red Lion RLCB15-230 1.5-HP VMC Control Box
Best for: installations requiring robust outdoor-ready protection and UL listing. The Red Lion RLCB15-230 is designed for 1.5 HP, 230-volt, three-wire, single-phase submersible pumps, with indoor/outdoor use supported by a NEMA Enclosure 3 rating and UL listing in the USA and Canada. It includes multiple conduit knockouts and three mounting holes for flexible mounting.
Why chosen: The combination of UL listing and enclosure protection makes this model a reliable choice for exterior wells or garages where weather and dust exposure are expected. Caution: while it supports outdoor use, ensure you select the appropriate conduit sizes for your wiring plan to maintain watertight integrity.
Walfront Deep Well Pump Control Box 2.2KW
Best for: users seeking strong thermal protection and a robust enclosure for heavy-duty use. Walfront’s 2.2KW, 70μF start capacitor, and 20A overload protection provide dependable motor protection against voltage swings and overloads. The high-impact ABS enclosure with stainless steel internal components resists harsh weather and long-term use.
Why chosen: This model is a solid pick for tougher wells or long-running applications where durability and reliable protection from overheating are important. Caution: verify that the pump’s wattage and capacitor specification align with the 70μF rating to avoid performance mismatch.
Red Lion RLCB10-230 1-HP Control Box
Best for: compact, economical options that still offer reliable protection for smaller systems. The RLCB10-230 supports 1 HP, 230-volt, 3-wire, single-phase pumps, with a NEMA Encl. 3 rating for indoor/outdoor use and UL listing. It provides four 7/8-inch and three 1-1/8-inch knockouts, plus a drain hole and two mounting holes for flexible installation.
Why chosen: For small wells where space is limited or a lighter-duty unit is sufficient, this model provides essential protection with a compact footprint and versatile conduit options. Caution: for larger or higher-flow pumps, opt for a higher-capacity model to ensure adequate protection and performance.
Buying Guide: Key Considerations for Deep Well Pump Control Boxes
- Power and compatibility: Match the control box to your pump’s motor horsepower (HP) and voltage (typically 110V-230V). Choose a unit with a compatible capacitor rating and overload protection to prevent motor damage.
- Protection features: Look for thermal protection, overload protection, and weatherproof enclosures. Outdoor wells benefit from rugged, waterproof, and dustproof designs.
- Enclosure and durability: ABS or metal enclosures with corrosion resistance extend life in harsh environments. Aluminum and stainless steel are options for corrosive surroundings.
- Installation flexibility: Knockouts, conduit sizes, and mounting options affect how easily the box fits your wiring plan. Ensure the unit provides enough knockout holes and compatible diameters for your conduit.
- Ease of maintenance: A design that allows component replacement without removing the pump from the well reduces downtime and maintenance costs over time.
- Certifications: UL listings and NEMA ratings help verify safety and suitability for indoor/outdoor use in the US and Canada.
Frequently Asked Questions
- What is a deep well pump control box used for?
It houses protection and switching components to control a deep well submersible pump, guarding against electrical faults and ensuring safe startup and operation.
- Do I need a weatherproof control box for an outdoor well?
Yes. Outdoor wells face rain, dust, and temperature fluctuations. A weatherproof, rust-resistant enclosure helps prevent moisture ingress and component corrosion.
- Which features are essential for most home wells?
Thermal protection, overload protection, and a suitable enclosure rating (such as NEMA 3) are essential for reliable operation in varied outdoor conditions.
- Can I install a control box myself?
Yes, if you have basic electrical wiring knowledge and follow manufacturer instructions. Ensure the power is off and that wiring complies with local codes.
- What should I consider when upgrading from a smaller to a larger control box?
Confirm the pump’s horsepower, voltage, start capacitor rating, and current draw align with the new box’s specifications to avoid mismatched protection or overheating.
