Answering the need for reliable, adjustable differential pressure sensing, this guide highlights top picks designed for HVAC, boiler rooms, and industrial systems. These switches help detect small pressure differentials to trigger alarms, safety shutoffs, or control fans and dampers. Best for: technicians seeking field-adjustable setpoints, installers needing compact or robust units, and OEMs requiring repeatable performance across environments. The table below summarizes five standout options and their ideal applications.
| Product | ||
|---|---|---|
| P62520 for Adjustable Differential Pressure Switch | Field-adjustable monitoring | Compact, easy adjustment |
| (Pack of 20) AI-DPS-32 | Batch installs & calibration | Broad 50-500 Pa range |
| Tissting LF32-05 | Rugged HVAC/industrial use | Waterproof/robust design |
| Murphy A20DP-K-15 | Critical plant alarms | Dial-based adjustment |
| FYIZO FYZ-15-SW12 | Universal replacement | 0.15”–2.0” WC range |
P62520 Adjustable Differential Pressure Switch
The P62520 is designed for adjustable differential operation and is best suited for systems that require precise, field-set pressure thresholds. The compact form helps with installation in tight spaces, and the model is described as adjustable for different differential pressures. Choose this if you need a straightforward, adjustable switch without extensive installation requirements. A potential limitation is that, as with many compact switches, wiring may require careful routing in confined panels.
AI-DPS-32 Adjustable Differential Set Point
This pack of 20 units targets installations that require multiple calibrated sensors or replacements in one project. It covers a wide range of 50-500 Pascals, with a compact housing designed for durable service. It is best for contractors or OEM environments where standardized, repeatable set points across many channels are needed. The data notes a wide operating temperature range and solid electrical ratings, though exact tolerances should be verified for sensitive processes.
Tissting LF32-05 Differential Pressure Switch
The LF32-05 model targets HVAC and air-handling equipment with a 50-500 Pa measuring range and a specified 20 Pa sensing delta. It comes with a complete accessory kit for easier installation, including tubing and fixing screws. This makes it well-suited for retrofit projects or new equipment that demands a robust mounting solution. A potential drawback is the heavier accessory load that comes with the package, which may influence mounting space planning.

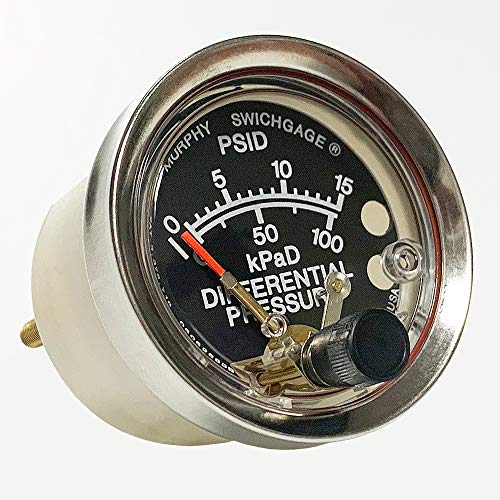

Murphy by Enovation Controls A20DP-K-15
The A20DP-K-15 offers a dial-based, diaphragm-actuated differential pressure gage with an adjustable knob for field tweaks, enabling precise setpoints without extra tools. The integrated switch supports alarms and shutdowns, making it a strong candidate for critical process monitoring. Best for applications where a visible, mechanical gauge plus a switch is required. One limitation is that the device’s 2″ dial may be larger than some compact panels allow, so clearance should be checked before purchase.
FYIZO FYZ-15-SW12 Universal Adjustable Switch
The FYIZO model provides a universal adjustable design covering 0.15”–2.0” WC, making it suitable as a replacement for a variety of OEM switches. It detects positive, negative, and differential pressures, expanding its versatility for HVAC, kitchen equipment, and outdoor appliances. Calibration is described as straightforward using an adjustment cover and Allen wrench. A caveat is that universal replacements may require a careful matching of electrical ratings to existing wiring schematics.
Buying Guide: Key Purchase Considerations
- Range and setpoint adjustability: Ensure the switch covers your operating differential pressure and offers straightforward field calibration.
- Media compatibility: Confirm the switch is rated for air, gases, or non-corrosive environments present in your system.
- Electrical ratings: Check contact voltage, current ratings, and compatibility with your control circuit.
- Mounting and form factor: Consider enclosure size, port connections, and whether a panel installation or inline mounting is required.
- Reliability in conditions: For outdoor or harsh environments, select models with robust housings and temperature ranges that match your site.
- Accessories and installation kit: Some models ship with tubing, screws, or conduit fittings—factor these into your installation plan.
FAQ
- What is an adjustable differential pressure switch used for?
It detects small pressure differences to trigger controls, alarms, or shutoffs in HVAC and industrial systems. - How do I choose the right range?
Compare your system’s typical differential pressures and select a model that covers that range with a comfortable margin. - Can these switches operate with multiple media?
Many are rated for air and non-hazardous gases; verify media compatibility in the product specs. - Is calibration required after installation?
Yes, field adjustment is common to set the precise differential point for your application. - What installation considerations matter most?
Ensure adequate clearance, proper port threading, and correct electrical wiring to avoid malfunctions. - Are universal replacement models a good choice?
They offer flexibility, but confirm electrical and mechanical compatibility with your system to avoid fit issues.
