Looking for a 250 amp fused disconnect switch or the closest high-capacity alternative? This guide highlights five reliable options suitable for residential, commercial, and light industrial applications. Each product section explains who it’s best for, why it was selected, and a practical limitation to consider. Use the buying guide to compare key features and decide which model fits your electrical configuration and safety requirements.
| Product | Poles | Fuse Type | Max Voltage | Best For |
|---|---|---|---|---|
| Siemens HF324NR | 3 | Fused | 240V | High-capacity, quick operation for 2/3-wire systems |
| Siemens HF361 | 3 | Fused | 600V | Indoor/outdoor with higher voltage needs |
| OTDC250UFV11-ESS | 2 | Non-Fused | 1500VDC | Panel-mount, UL98B, for DC circuits |
| SURAIELEC 30 Amp Fused AC Disconnect | 2 | Fused | 240V | Outdoor HVAC or mini-split applications |
| MUJURUR 2P 30 Amp Disconnect | 2 | Fused | 240V | Residential and light commercial power interruption |
Siemens HF324NR 200-Amp Fused Heavy Duty Safety Switch
This Siemens HF324NR is a 200-amp, 3-pole, 240V, 4-wire fused safety switch designed for quick-make and quick-break operation. It features generous wire-bending space to meet or exceed NEC requirements, helpful for installations that require reliable positive operation and ample enclosure clearance. Best for: industrial or commercial panels needing high current capacity with fused protection and room to route conductors.
Limitations: Capacity is 200A, not 250A, so it’s most suitable where a 200A fused switch is acceptable or where upstream protection allows for higher feeder ratings. Best for: users prioritizing robust construction and NEC-compliant wiring space.
Siemens HNF364R 200-Amp Non-Fused Heavy Duty Safety Switch
Note: This model is non-fused and rated at 200A, with 3 poles and 600V. It’s designed for quick-make and quick-break operation, with arc chutes to dissipate heat and extend switch life. Best for: applications where non-fused protection is preferred and 600V systems are present. Limitation: Not a fused option, so it may not meet systems requiring fused protection at similar current levels.

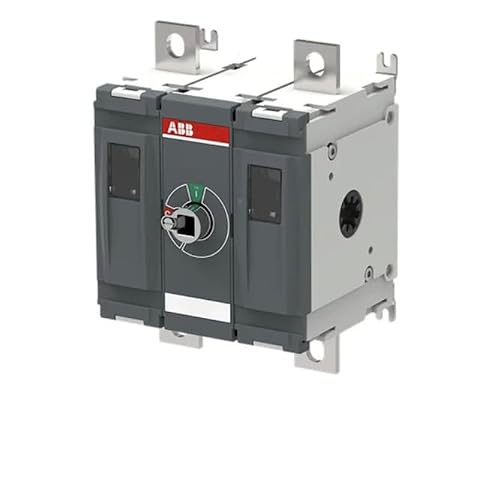

OTDC250UFV11-ESS Non-Fused Disconnect Switch 250A
This panel-mount, UL98B-approved disconnect provides 250A capacity in a 2-pole, 1500VDC configuration. It’s suitable for high-voltage DC or mixed systems where a robust disconnect is needed but fused protection isn’t required. Best for: DC or high-voltage setups that require long-term panel-mounted reliability. Limitation: It is non-fused, so it does not provide overcurrent protection by fusing.
MUJURUR 2P 30 Amp Disconnect Box
This 2-pole, 30-amp disconnect is designed for reliable power interruption in residential and light commercial settings. It features quick make-break action and a tamper-resistant design with padlock-ready OFF positions. Best for: affordable, cabinet-ready disconnecting of smaller circuits. Limitation: Much lower amperage than 250A models, so it’s not suitable for high-current feeders.
SURAIELEC 30 Amp Fused AC Disconnect Box
This outdoor, pull-out AC disconnect box is UL-listed and rated for 30A at 240V, with a NEMA 3R weatherproof galvanized steel enclosure. It’s designed for reliable outdoor use, including mini-split or HVAC installations. Best for: outdoor, weather-exposed disconnect needs with compact, user-friendly pull-out operation. Limitation: Not suitable for higher amperage circuits or 250A-class needs.
Buying Guide: Key Considerations for High-Current Disconnects
- Fuse vs. non-fused: Determine whether your system requires overcurrent protection in the disconnect. Fused switches provide built-in protection; non-fused units rely on external fuses or breakers.
- Current rating: Match the switch rating to the feeder or equipment it will protect. Higher amperage models are essential for large motors and feeders; smaller models fit lighting or HVAC control circuits.
- Voltage range: Ensure the switch voltage aligns with your system (240V, 600V, or higher DC voltages). For mixed or DC applications, verify compatibility with DC ratings.
- Enclosure type and environment: Indoor vs. outdoor use; enclosure rating (NEMA 3R, etc.) matters for weather resistance and corrosion resistance.
- Pole configuration: 2-pole vs. 3-pole units depend on your wiring (single-phase vs. three-phase) and the number of conductors that require switching.
- Mounting and installation: Panel-mount vs. wall-mount or outdoor enclosures influence ease of installation and service access.
- Safety features: Look for quick-make/quick-break design, arc suppression, and tamper-resistant features when applicable.
FAQ
- What amperage should I choose for a fused disconnect? Choose based on feeder current and motor or load requirements; consider a fused unit if integrated overcurrent protection is needed.
- Is a 200A switch acceptable if my system is 250A? Not typically; you should match or exceed the system’s required current rating, or upgrade upstream protection to handle the load safely.
- Why choose a non-fused disconnect? Non-fused disconnects are suitable when external fusing or circuit breakers provide protection; they can simplify compliance in some designs.
- Can I use a 600V-rated switch in a 240V system? Yes, switches rated for higher voltage can be used on lower-voltage circuits, but ensure the switch is appropriate for your wiring and safety standards.
- What is the advantage of a pull-out disconnect box? Pull-out designs offer clear ON/OFF visibility, easier maintenance, and safe disconnection in outdoor or exposed installations.
- Do all disconnects meet NEC requirements? Many do, but always verify the specific model’s NEC compliance and local code approvals for your application.
